1. H.265 Video Compression
Advanced H.265 Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264.
This means H.265 video saves around 50% of the bit rate at the same quality of coding.
H.265 is superior to H.264 regarding to the bandwidth usage.
2. 1/3'' 5.0MP CMOS.
HD 5.0MP resolution image.

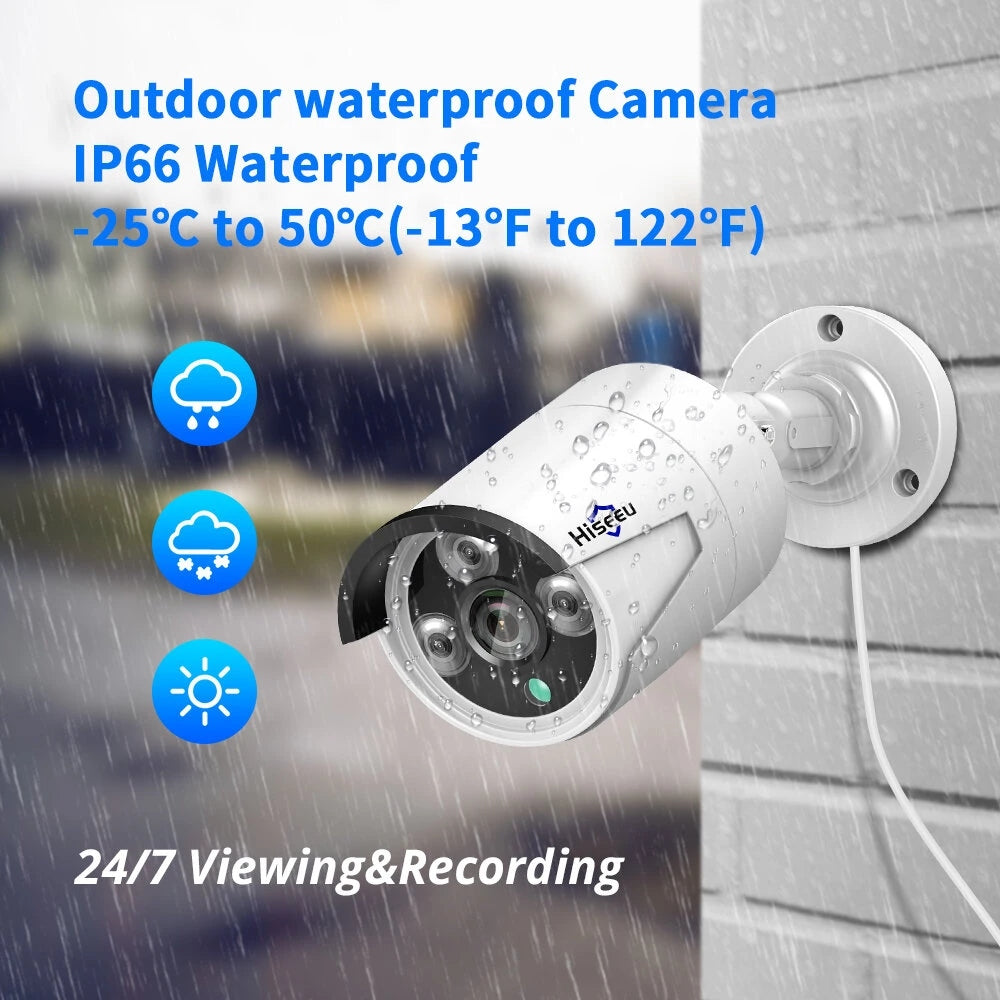

3. Waterproof, suitable for indoor and outdoor.
4. Default lens: 3.6mm
5. Power Supply: DC 12V/ 48V PoE Optional. (Note: Power adapter are not included in the package)
6. Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
Built in IR-Cut Filter.
Auto switch to day/night mode, Perfect night vision.
7. Support motions detection, ONVIF,Support mobile access.
8. Plug and play. Easy remote access via PC, iPhones & Android mobile.
| Product Model: HB615 | ||
| Camera | ||
| System | Embeded Linux OS | |
| Pixel | 500W | |
| Dynamic range | 52dB | |
| Noise reduction | 3D DNR | |
| Electronic shutter | 1s-1/100000s | |
| Minimum illuminance | Colour: 0.1 Lux(F1.2); BW: 0.05 Lux(F1.2); 0 Lux with IR ON | |
| Lens | ||
| Focal length | 3.6mm | |
| Horizontal view | 80° | |
| Interface type | φ12 | |
| Infrared | ||
| Infrared distance | 20m | |
| Infrared LED | 3 pcs High-power Infrared LED | |
| Coding mode | ||
| Video compression | H.265/M-JPEG | |
| Coding type | BaseLine Profile/Main Profile/High Profile | |
| Video stream | 32K-2Mbps | |
| Transmission mode | Dual stream | |
| Other | ||
| Network protocol | TCP/IP, UDP, P2P, DNS, DHCP, RTSP, ONVIF | |
| IP address | Support static and dynamic IP addresses | |
| System permission | Username and password custom | |
| System clock | Built-in clock, External synchronization, NTP, Time zone | |
| Smart alarm | Motions detection | |
| General specification | ||
| levels of protection | lightnings protection, surging protection | |
| Temperature | -20℃ to 60℃ | |
| Humidity | 0-95% (No precoss) | |
| Size | 85mm×65mm×60mm | |
| Power Supply | DC12V/1A power adapter | |
| Power | <5W | |
Package includeds :
